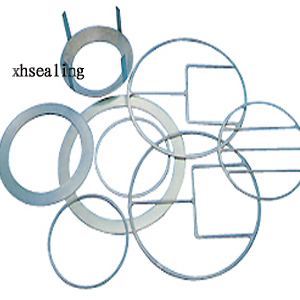

Double Jacketed Gasket

  Double Jacketed Gasket (DJG) is made from graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.


APPLICATION

particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.

By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered.

MATERIAL



Metal material

Hardness

HB

Temperature (℃)

Density

g/cm3

CS/Soft Iron

90~120

-60~500

7.85

SS304, SS304L

130~180

-250~550

7.9

SS316, SS316L

130~180

-250~550

7.9

Copper

50~80

-250~400

8.9

Aluminium

20~30

-250~300

2.73

Other special metal Ti, Monel400 are also available on request.

Materials for the insert:

Flexible Graphite, ASB, Non-asb

ceramic fiber, mica etc

Dimension

Outer diameter: up to 5000mm

Thickness :from 2 to 8 mm

Name Cross section shape Use
The wave form wraps Fu mat a slice 包覆墊片形式1 Wrap Fu mat, the slice mainly useds for a heat exchanger, the valve cover, pressure container tower, slot, piping method orchid...etc.
The wave form outside sticks graphite to wrap Fu mat a slice 包覆墊片形式2
Whole pack Fu mat slice 包覆墊片形式3
Outside stick graphite to wrap Fu mat a slice 包覆墊片形式4
